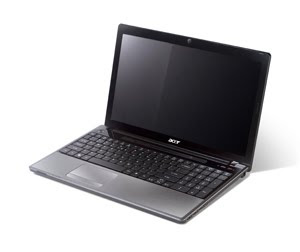

Acer Aspire 5745 Laptop Specifications

Acer Aspire 5745



Acer Aspire 5745 (1)

Acer Aspire 5745 (2)

Acer Aspire 5745 (3)

Acer Aspire 5745 (4)

Acer Aspire 5745 (5)

Acer Aspire 5745 (6)

Acer Aspire 5745 (7)

Acer Aspire 5745 (8)

Acer Aspire 5745 (9)

Acer Aspire 5745 (10)

Acer Aspire 5745 (11)

Acer Aspire 5745 (12)

 Specifications:

Display
Aspire® 5745 and 5745G models :
Diagonal Size : 15.6"
Max Resolution : HD (1366 x 768), 16:9 aspect ratio
Technology : Acer® CineCrystal, TFT LCD, LED backlight, super-slim design, mercury-free
Brightness : 200-nit
Color : up to 16.7 million colors

Aspire® 5745PG models :
Diagonal Size : 15.6"
Max Resolution : HD (1366 x 768), 16:9 aspect ratio
Technology : Acer® CineCrystal, TFT LCD, LED backlight, frameless design, mercury-free, Integrated multi-touch screen supporting finger touch
Response Time : 8ms
Brightness : 220-nit
Color : up to 16.7 million colors

Processor (CPU)
Type : Intel® Core™ i7-720QM Mobile Processor
Speed : 1.6GHz
Cache : 6MB Intel® Smart Cache

Type : Intel® Core™ i5-450M Mobile Processor
Speed : 2.4GHz
Cache : 3MB Intel® Smart Cache

Type : Intel® Core™ i3-370M Mobile Processor
Speed : 2.40GHz
Cache : 3MB Intel® Smart Cache

Type : Intel® Core™ i3-350M Mobile Processor
Speed : 2.26GHz
Cache : 3MB Intel® Smart Cache

Chipset
Mobile Intel® HM55 Express

Memory
Up to 4GB (2 x 2GB) DDR3 1066 SDRAM
Total slots : 4
Max :
16GB (4 x 4GB) with Intel® Core™ i7 Mobile Processor
8GB (2 x 4GB) Intel® Core™ i5 or Intel® Core™ i3 Mobile Processor

Graphics Card
Integrated Intel® HD Graphics (Microsoft® DirectX® 10.0 support)
Discrete NVIDIA® GeForce® GT 310M graphics (Microsoft® DirectX® 10.1 support)
Discrete NVIDIA® GeForce® GT 330M graphics (Microsoft® DirectX® 10.1 support)

Hard Drive
Up to 640GB SATA 5400rpm

Communication
LAN : Gigabit LAN, Wake-on-LAN ready
WLAN : 802.11b/g/n, Acer® SignalUp technology
Bluetooth options :
Bluetooth® v3.0 + HS (high speed) wireless PAN (select models only)
Bluetooth® v2.1 + EDR (enhanced data rate) wireless PAN (select models only)

Input
Aspire® 5745 and 5745G models:
103-key keyboard, inverted T cursor layout, independent standard numeric keypad, hotkey controls, international language support
10 function, four cursor, two Microsoft® Windows® keys
Play/pause, stop, previous, next media control keys printed on keyboard
Multi-gesture touchpad supporting vertical scrolling, pinch-action zoom, page flip, pivot rotate

Aspire® 5745 models:
Programmable easy-launch button

Aspire® 5745G models:
Power smart easy-launch button

Aspire® 5745PG models:
103-key Acer® FineTip keyboard, independent standard numeric keypad, international language support
Play/pause, stop, previous, next, volume up, volume down media control keys printed on keyboard
Multi-gesture touchpad supporting two-finger scroll, pinch, rotate, flip
Acer® PowerSmart key on models with Intel® Core™ i3 or Intel® Core™ i5 Mobile Processor
Programmable key on models with Intel® Core™ i7 Mobile Processor

Audio
Integrated microphone
Microsoft® DirectSound® compatibility
Optimized third-generation Dolby® Home Theater® audio enhancement
Headphones/speaker/line-out with SPDIF support and microphone ports

Interface
1 x DC-in
1 x RJ-45 LAN
1 x VGA
1 x Headphones/speaker/line-out with SPDIF support
1 x Microphone
1 x HDMI™ (High-Definition Multimedia Interface™) with HDCP (high-bandwidth digital-content protection)
4 x USB 2.0

Optical Drive
Integrated variable-speed Blu-ray Disc™ drive / Super-Multi drive combo
Integrated variable-speed Super-Multi drive

Slots
Card Reader : 5-in-1 card reader (MultiMediaCard™, Secure Digital card, Memory Stick®, Memory Stick PRO™, xD-Picture Card™)

Camera
Acer® Crystal Eye webcam, 1280 x 1024 resolution

Power
Aspire® 5745 models :
Battery : 6-cell Li-Ion
AC adapter : 65W
Battery Life : up to 3.5 hours

Aspire® 5745G models :
Battery : 6-cell Li-Ion
AC adapter : 90W
Battery Life : up to 3.5 hours
Recharge time : 2.0 hours with power off, 80% charge in 1.0 hour

Aspire® 5745PG models :
Battery : 6-cell Li-Ion
AC adapter : 90W
Battery Life :
- Up to 3.5 hours with Intel® Core™ i3 or Intel® Core™ i5 processor
- Up to 3.0 hours with Intel® Core™ i7 processor
Recharge time : 2.0 hours with power off, 80% charge in 1.0 hour

Security
User, administrator and hard drive BIOS passwords
Kensington® lock slot

Operating System
Genuine Windows® 7 Home Premium

Dimensions and Weight
Aspire® 5745 and 5745G models:
Width : 379.0mm (14.9")
Depth : 250.0mm (9.8")
Height : 25.5mm – 34.1mm (1.0" - 1.3")
Weight : 2.6kg (5.7 lbs)

Aspire® 5745PG models:
Width : 379.0mm (14.9")
Depth : 250.0mm (9.8")
Height : 28.5mm – 36.0mm (1.1" - 1.4")
Weight : 2.75kg (6.0 lbs)

Software
All models :
Acer® Crystal Eye
Acer® eRecovery Management
Acer® Identity Card
Acer® Registration
Acer® Updater
Adobe® Acrobat® Reader
Adobe® Flash® Player
eSobi™
Google™ Toolbar
McAfee® Internet Security Suite (trial version)
Microsoft® Office (60-day trial)
Microsoft® Silverlight®
Microsoft® Works
Norton™ Online Backup
NTI Media Maker™
Skype™
Windows Live™ Essentials

Aspire® 5745PG models :
Acer® TouchPortal
